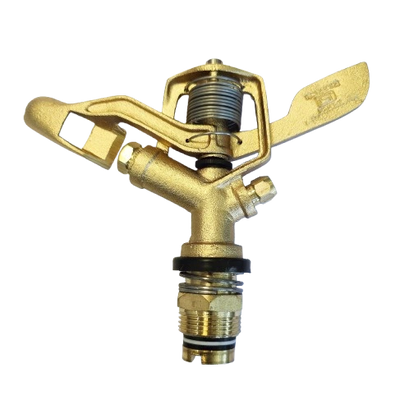

GUNMETAL IMPACT SPRINKLER

GUNMETAL IMPACT SPRINKLER

 Our supreme quality range of  Gunmetal Impact Sprinklers is used in agricultural irrigation to facilitate water for vegetation. It is used to supply water via plumbing fitting as on a schedule. available in both low and high weight to perform at low high pressures.



          Advantages of Sprinkler Irrigation System

  • Uniform distribution of water in slope area
  • Sprinkler  irrigation does not require surface shaping of leveling
  • Has the ability to keep the soil soft for emerging seedlings with frequent short irrigation
  • Can be applied to the area of variable topography
  • Promotes rapid germination and crop establishment
  • Chemical and fertilizer applications are easily used with a sprinkler system

GLW 330 - 350 grms

  Overhead sprinkler with 3/4" BSP/NPT male threaded connection and 27° trajectory angle. Body and arm made of  Gunmetal for durability. Used for all crops irrigation compatible by overhead irrigation on a solid set, permanent set, hard lines, portable lines, wheel lines, and mechanically moved system such as center pivot. Also useful for areas where strong wind is prevalent.




Features


  • 3/4" BSP/NPT male threaded


  • Durable  Gunmetal  Body & Arm


  • Heavy-duty Brass Nut &Tube


  • Stainless Steel Pivot Pin and springs


  • Bearing & Sealing washes are made of material for extending life.


  • Recommended Pressure 1.0 - 3.5 kg/cm2 or 14 - 50Psi


  • Recommended spacing up to 15m for higher distribution uniformity.


  • Trajectory Angle: 27°


GMW 380 grms

  Overhead sprinkler with 3/4 ” BSP/NPT male threaded connection and 27° trajectory angle. Body and arm made of Gunmetal for durability. Designed for full-field irrigation of field crops. Primarily used in irrigation by overhead irrigation solid set systems – portable or permanent.




Features



  • · Available in 3/4 " BSP/NPT male threaded


  • · Durable Gunmetal Body and Arm.


  • · Heavy duty Brass Nut, Tube, and nozzles.


  • · Stainless Steel Pivot Pin and springs.


  • · Recommended Pressure 1.0 - 3.5 kg/cm2 or 14 - 50 Psi


  • · Recommended spacing up to 21m for higher distribution uniformity.


  • · Trajectory Angle: 27°

GHW 400 grms

  Overhead sprinkler with 3/4 "  BSP/NPT male threaded connection and 27° trajectory angle. Body and arm made of Gunmetal for durability. Designed for full-field irrigation of field crops. Primarily used in irrigation by overhead irrigation solid set systems – portable or permanent. Specially designed for large precipitation rate and spacing.




Features



  • · 3/4" BSP/NPT male threaded and


  • · Specially designed for large precipitation rate and spacing.


  • · Durable Gunmetal Body and Arm


  • · Heavy-duty Brass Nut & Tube


  • · Stainless Steel Pivot Pin, Springs


  • · Recommended Pressure 1.0 - 3.5 kg/cm2 or 14 - 50Psi


  • · Recommended spacing up to 18m for higher distribution uniformity


  • Trajectory Angle:  27°

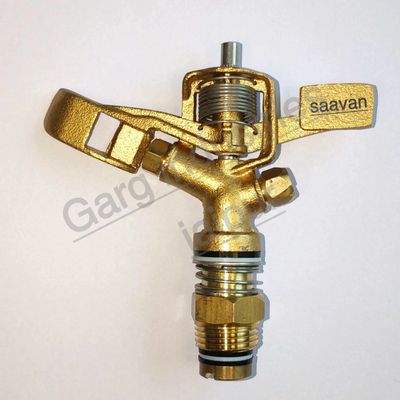

BRASS MINI SPRINKLER

  Overhead sprinkler with 1/2 ” BSP/NPT male threaded connection and 27° trajectory angle. Body and arm made of Gunmetal for durability. Designed for full-field irrigation of field crops. Primarily used in irrigation by overhead irrigation solid set systems – portable or permanent.




Features



  • · Available in 1/2 " BSP/NPT male threaded


  • · Durable Gunmetal Body and Arm.


  • · Heavy duty Brass Nut, Tube, and nozzles.


  • · Stainless Steel Pivot Pin and springs.


  • · Recommended Pressure 1.0 - 3.5 kg/cm2 or 14 - 50 Psi


  • · Recommended spacing up to 21m for higher distribution uniformity.


  • · Trajectory Angle: 27°
